Chesil Beach

Description
Chesil home
Description

Chesil Beach is a linear shingle storm beach stretching from Portland in the south to West Bay in the north-west. At its widest it is up to 200 metres in width. The height of the beach is typically 11 metres above mean sea level.

The seaward face of the beach is steeply shelving and this continues below the sea level until it gradually levels off at around 18 metres below sea level some 300 metres offshore in the southern part of the beach. Further north the offshore depth is around 11 metres.

There is a clear southern limit to the beach where it meets the limestone of Portland, but the northern limit is less distinct and depends on the definition used. Various limits have been proposed from Abbotsbury to West Bay. Geologically there is some merit in these arguments, but for practical purposes the limit is taken as the pier at West Bay. The pier is an effective barrier to longshore drift into or away from Chesil Beach.

The beach stabilised close to its present position some 5000 years ago. Since then it has been advancing slowly towards the mainland. Current estimates suggest that at the southern end this rate of advance is around 15 cms per year, with a slower rate further north. This advance occurs under storm conditions and is caused either by over-topping waves or by cann action where the water comes through the beach pushing quantities of pebbles out into the Fleet. This advancement is slowly causing increasing isolation of the various segments of the beach between Abbotsbury and West Bay.

Under storm conditions large quantities of pebbles can be removed from the beach onto the seabed. For severe storms the quantities can exceed 3 Million tonnes. Subsequent wave action then replaces these pebbles on the front of the beach.

There appears to be two types of storm conditions that affect Chesil Beach. The majority of storms are deep depressions approaching from the south-west where the combination of strong winds and low barometric pressure can produce storm surges in the English Channel combined with high local waves. A rarer type, but potentially more dramatic in impact, occurs when large storms out in the Atlantic generate huge, long-period swell waves that travel up the Channel and impact the Beach. Such waves can have a period of up to 20 seconds, compared with the 5-10 second period of local storm waves. Two such events are known to have occurred in 1904 and 1979.

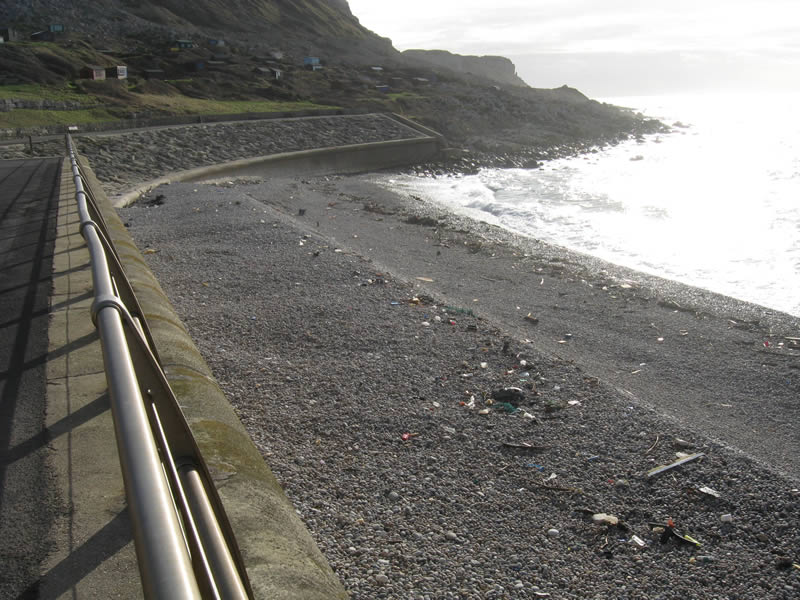

Southern end of Chesil Beach
The southern end of Chesil Beach
Chesil beach
Chesil Beach looking south from the Narrows towards Portland
Chesil Beach

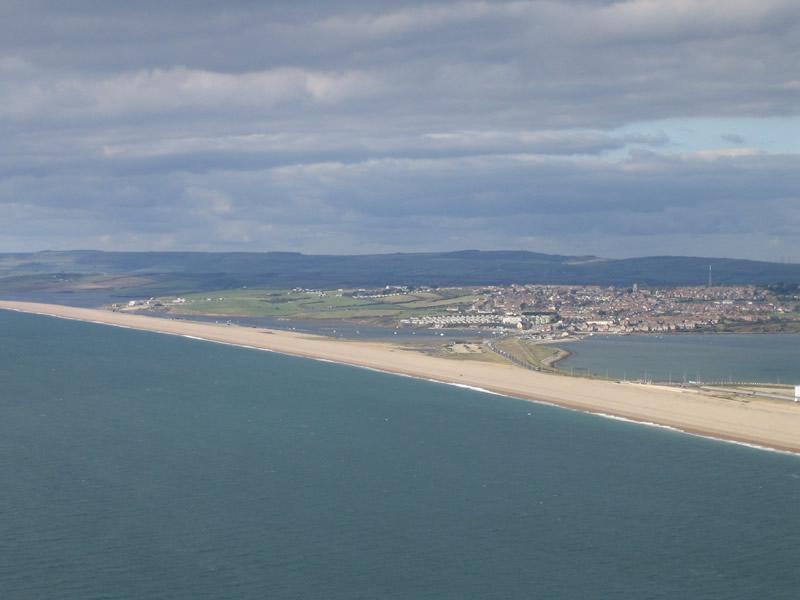

Chesil beach at Ferrybridge and beyond

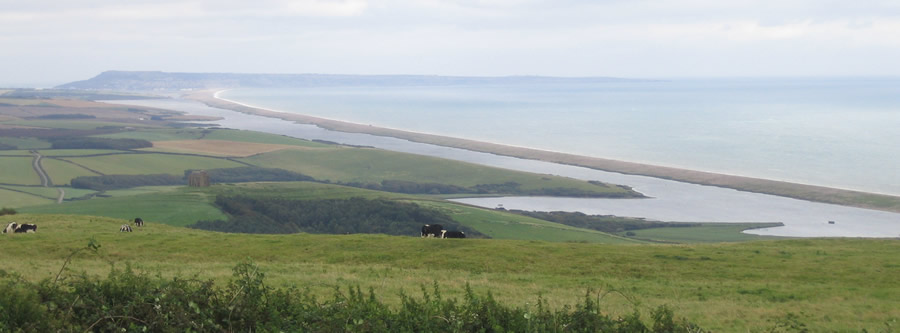

  Sweep of Chesil Beach
